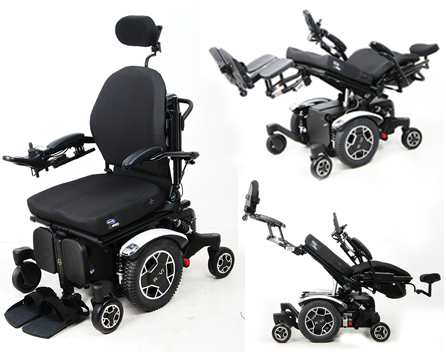

The all-NEW 407 Maxx - Single Pivot Tilt Power Positioning System from Motion Concepts was exclusively designed for the NEW A3 Power Base from ROVI. The simplicity of this system optimizes the geometry of the A3 base for maximum stability while offering up to 40° of Posterior Tilt with 7° of Anterior Assist as a standard confi guration. With the addition of a Recline (170°) module, and LNX power articulating center mount foot platform, the 407 Maxx system allows the client to achieve a unique position where the head is below and feet above the heart to assist with respiratory and circulatory conditions. The simple but effective design of the 407 Maxx system maintains all the features, fl exibility and good looks you have come to expect from Motion Concepts products.

System Highlights
Our Single Pivot Tilt Power Positioning system features up to 40° of Posterior Tilt with 7° of Anterior Assist
Optional Recline Module up to 170°
250 lb. weight capacity
Seat-to-Floor Heights as low as 17" dependent on configurations
Available with the full range of Motion Concepts’ accessories and Invacare® Matrx® Seating products, mounted via our Ultra Rail and Ultra Track slotted interfaces
16" - 22" of seat width and 16" - 22" seat depth adjustment
Optional LNX Power Center Mount Foot Platform or Fixed Center Mount Legrest
Standard Features
All Systems come with the seat pan, standard back pan, armrests, armpads and fixed center mount foot platform
Precline Module: 8°
Precline Module: 30°
Recline Body Fit
Single Post Angle Adjustable Fold Down Back (Matrx or Contour Back)
Matrx Seating Option
Matrx PS, Vi, PSP and Libra Cushions
Matrx Elite, Elite HD, Elite TR, Elite Deep, PB, PB Deep, PB HD, PB HD Deep Backs
Matrx Elan Headrest
Standard Electronics
Enhanced Electronics
Electronics Accessories
Accessories and Options
Motion Concepts Headrests
Modular, Standard, Waterfall, Flat Gel Arm Pads and Ergonomic Arm Troughs
Armrest Storage Compartment and Arm Pad Storage/Cup Holder
Lateral Trunk Supports and Hip Supports, removable or fixed
Transfer Handles (Height Adjustable)
Push Handles for Recline Systems (Straight or Angled)
Flip & Fold Away Half Lap Tray
