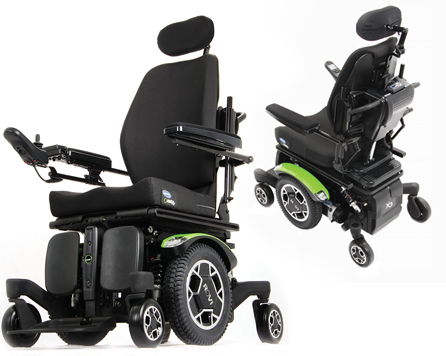

ROVI X3 Base
Highlights |
 |
>
<
 |
Active Ride Control (ARC) Suspension System |
|
23.25" Base Width and 36.5" Base length |
|
Drive Wheel Size: 14" and Caster Wheel Size: 6" |
|
Turning radius 20" |
|
4-pole EAD Mottors |
|
2 xM34 Batteries or 3 x M50 Option for Vent |
|
8A, OFF Board Battery Charger |
|
17.7 Mile Range |
|
3" Ground Clearance |
|
6.2 mph Maximum speed |
|
|
System
Highlights |
|
>
|
Our most modular system, featuring up to 50° of CG Tilt, 170° of Recline and up to 12" of nearly
silent Power Seat Elevation |
|
Available with the full range of Motion Concepts’ accessories and Invacare® Matrx® Seating products, mounted via our all new Ultra Rail and Ultra Track slotted interfaces |
|
up to 300 lb. weight capacity |
|
Seat-to-Floor Heights as low as 17" depending on power base |
|
Telescoping
legrest receivers adjust independently of system |
|
11" - 22" of seat width and 11" - 23" seat depth adjustment |
|
|
Most
modular system in the industry |
| |
|
Standard
Features |
|
All
Systems come with the seat pan, standard back pan, armrests,
armpads and fixed center mount front rigging |
|
Standard
Seat Widths: 16" - 22"; Small Adult 11" - 15" |
|
Standard
Seat Depths (Slotted adjustment in 3" ranges):16" - 23"; Small Adult 11" -15" |
|
Lifetime
Structural Warranty |
|
|
|
Positioning
Options |
|
Tilt
and Recline System with Extended Shear Reduction (ESR) |
|
Tilt
and Recline System with Power Sliding Back (PSB) |
|
Recline System with Extended Shear Reduction (ESR) |
|
Recline System with Power Sliding Back (PSB) |
|
Elevating Lift Seat Only System |
|
|
|
Modules |
|
Recline Body Fit |
|
Anterior
Tilt up to 45° |
|
Anterior
Assist: 5°, 10° |
|
Pre-tilt
Module: 5° |
|
Precline Module: 8° and 30° |
|
Elevating
Single Post Angle Adjustable Fold Down Back
|
|
Elevating
Seat Weight Capacities: up to 250 lbs |
|
Lateral
Tilt Module: 15° Left & Right |
|
|
|
|
|
Matrx
Seating Option |
|
Matrx Libra, Vi, PS
and Flo-tech Cushions |
|
Matrx PB, PB Deep, PB HD, PB HD Deep and Elite, Elite HD, Elite TR,Elite Deep Backs |
|
|
|
Front
Rigging Option |
|
Fixed Center Mount Foot Platform |
|
Invacare 70° Swing Away Footrests |
|
LNX Power Center Mount Foot Platform |
|
Power Telescoping Foot Platform for LNX |
|
Power Flip up Foot Platform for LNX |
|
Vertical Lifting Platform |
|
Power Telescoping Foot Platform 70° - 90° Fixed Center |
|
Power Flip-up Fot platform for 70°-90° Fixed Center Mount Foot platform |
|
Maxx Style Swing Away Power Elveating Pivot Legrests |
|
Swing away Power Elevating Pivot Plus Legrests |
|
|
|
|
|
Accessories
and Options |
|
Motion
Concepts Headrests, Stealth Comfort Plus and Combination Headrest |
|
Modular, Standard,
Waterfall, Flat Gel Arm Pads and Ergonomic Arm Troughs |
|
Armrest
Storage Compartment and Arm Pad Storage/Cup Holder |
|
Lateral
Trunk Supports and Hip Supports, removable or fixed |
|
Transfer
Handles |
|
Lighting
Effects and Headlights |
|
Single
and Double Backpacks |
|
Endomorph
and Mesomorph Back Canes |
|
|
|
Vent Trays and O2 Holders |
|
Articulating,
Gimbal and Laptop Style Vents (on select systems sizes and
bases only) |
|
Liquid
and Gas O2 Holders |
|
|
